Highlights:

• Magnetic Switch for easy operation with gloves and protective equipment
• Extremely comfortable to carry
• Focusable thanks to Ledlenser Advanced Focus System
• Dustproof and protected against powerful water jets (IP66 & IP68)
• Red rear light as a position marker

Description

This Ledlenser makes it easy to brave any explosive work environment. The iLH8 is not only comfortable to wear, it is also the first headlamp for Ex Zone 2/22 with the Advanced Focus System. The iLH8 is approved for gas and dust groups IIC and IIIC in zones 2 and 22 (temperature class T4 / 135°C). This headlamp provides the right light for any situation and absolute safety for short-term explosive atmospheres. So you keep your mind free as well as your hands, leaving you to concentrate fully on your work.

Technical data

• Luminous flux 280 lm (Power) / 60 lm (Low Power)
• Lighting range 160 m / 80 m
• Battery duration 9 h / 38 h
• LED 1x Xtreme LED, White, 6000–8000 K, CRI 65
• Power supply 3x AA (Mignon) Alkaline 1.5 V, included. Not rechargeable
• Weight incl. batteries 345 g
• Weight excl. batteries 275 g
• Head diameter 41 mm
• Protection class IP66 & IP68
• Drop test 1 m
• Working temperature −20 to +40 °C
• ATEX certification Baseefa18ATEX0070 / IECEx BAS18.0008
• Ex marking II 3G Ex ic IIC T4 Gc / II 3D Ex ic IIIC T135 °C Dc
• Zones and groups Gas 2, IIA/IIB/IIC, T4 · Dust 22, IIIA/IIIB/IIIC, 135 °C
• Switch Magnetic Switch, Rotary Switch
• Optic Plastic lens (PMMA)
• Case material Head PC, tube PC
• Headband Side and overhead, elastic fabric, detachable, washable, rubberised back, 55° stepless movement
• Housing colour black

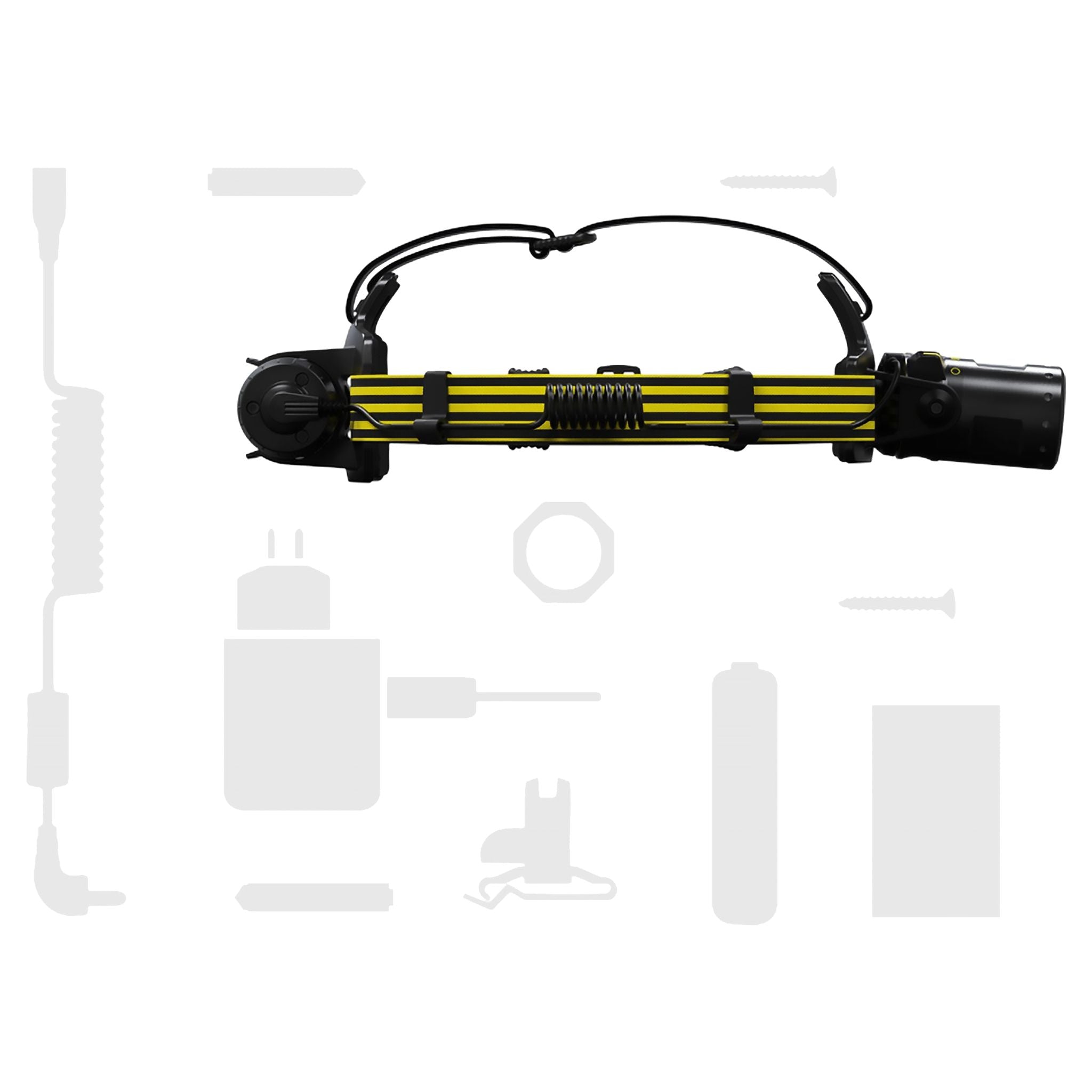

Scope of delivery

1 set of batteries, Battery Cartridge

Features and technologies

Advanced Focus System · Rear Red Safety Light

1) Measurements according to ANSI FL1 on the respective setting. Average values, in some cases, deviations by +/- 15 % may occur due to technical reasons. If no setting is explicitly indicated, the values refer to luminous flux (lumens/lm) and lighting range (meters/m) on the highest setting and to battery duration (hours/hrs/h) on the lowest setting. A boost function (if available) can be used several times, but only for short periods of time. If no setting is explicitly indicated, measurement is based on “energy saving mode.”

3) EP Patent 1880139, US Patent 7,461,960
