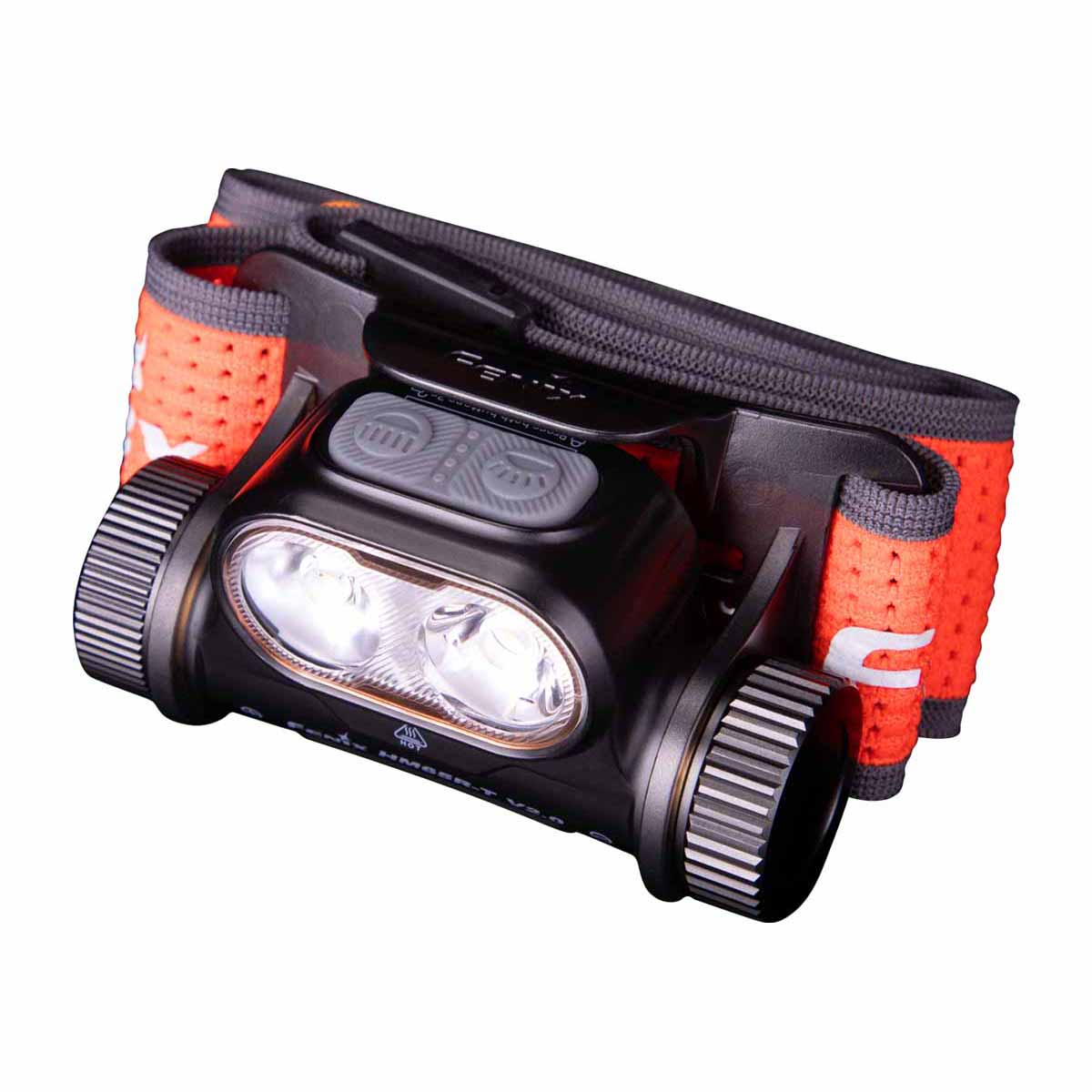

HM65R-T V2.0

LIGHTWEIGHT MAGNESIUM TRAIL RUNNING HEADLAMP

The Fenix HM65R-T V2.0 is a high-performance professional trail running headlamp. Powered by an included 3400mAh battery, the headlamp delivers a max output of 1600 lumens. Its max runtime could reach up to 300 hours at the 5-lumen Eco output. With a body made from magnesium alloy, the Fenix HM65R-T V2.0 has IP68-rated protection and 2 meters of impact resistance. The included two-way widened adjustable headband provides extra comfort and convenience for a perfect fit while on the run. It is recommended to use the Fenix HM65R-T V2.0 for trail running trips where you will need to light your path in a comfortable and hands-free way.

• 1600 LM Lumens
• 170 M Range
• 300 H Run Time
• IP68 Water Resistant

FEATURES

• 1600 lumens maximum output and 170 meters maximum beam distance. 1600 lumens maximum output and 170 meters maximum beam distance.
• LED Lifetime: 50,000 Hours Fitted with one Luminus SST40 white light LED and one OSRAM GW PUSTA1.PM warm white light LED; with a life span of 50,000 hours.
• Light Sources for Diverse Needs White and warm white light sources for various lighting demands.

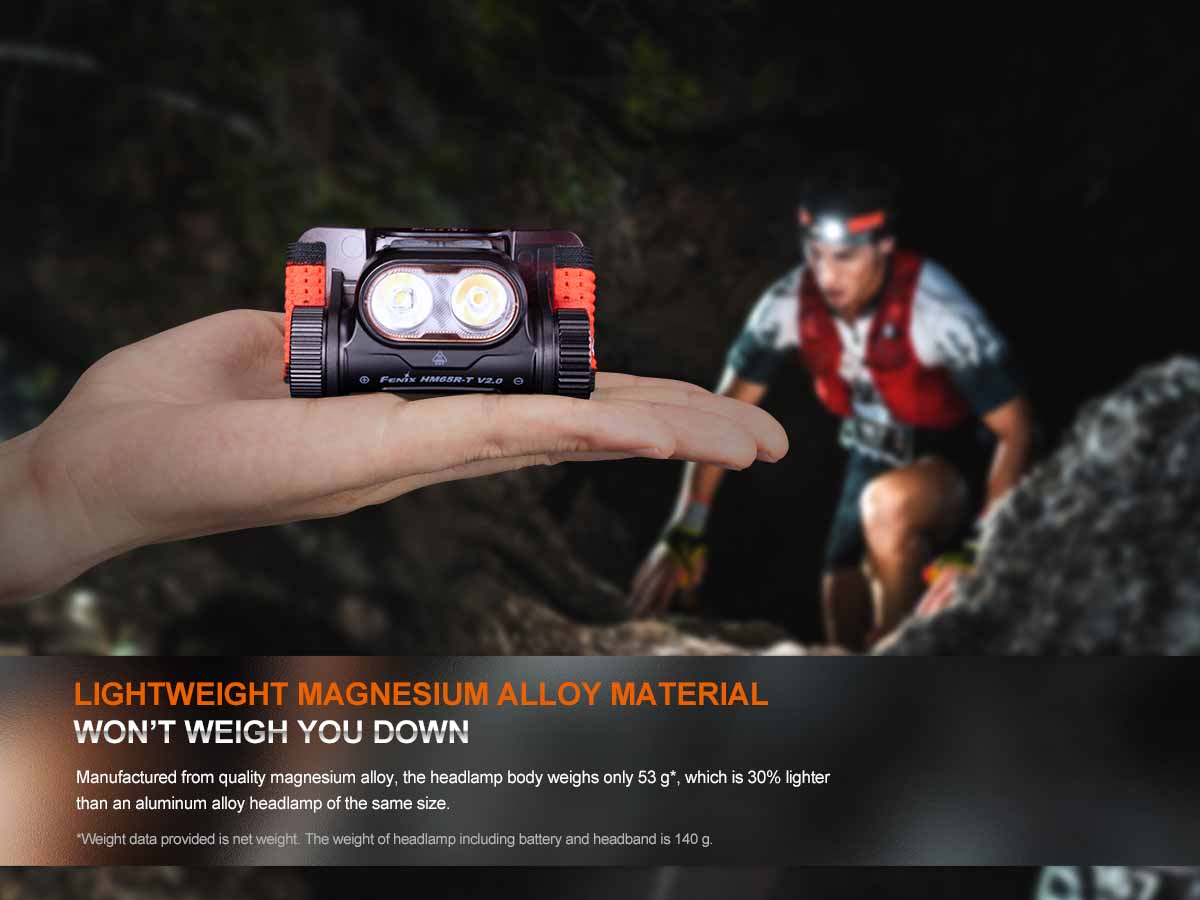

• Durable Lightweight Materials Quality aluminum, magnesium and PC made - lightweight and durable.

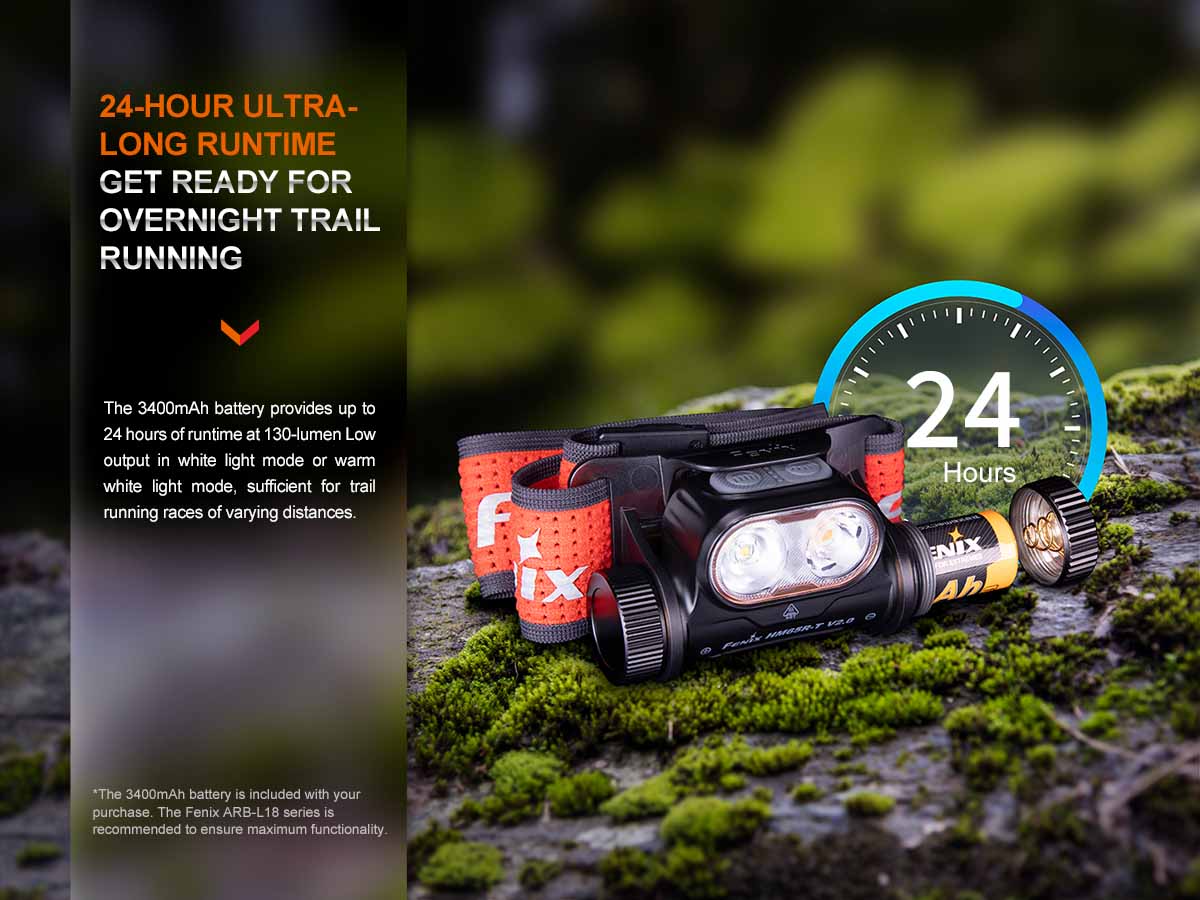

• Power Up: 3400mAh Battery with 300 Hours Runtime Powered by a 3400mAh battery, with a maximum runtime of 300 hours.

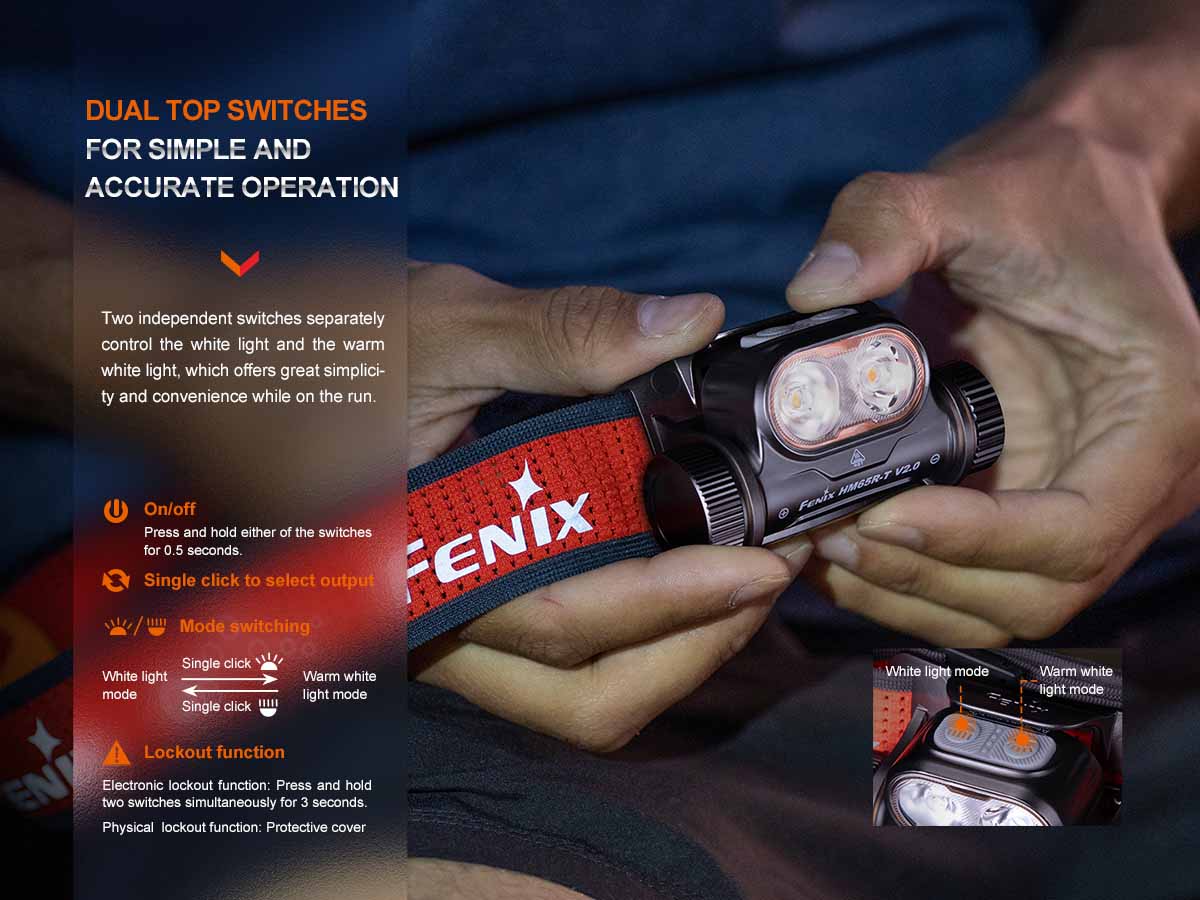

• Dual Top Switches for Quick Operation Dual top switches for easy and fast operation.

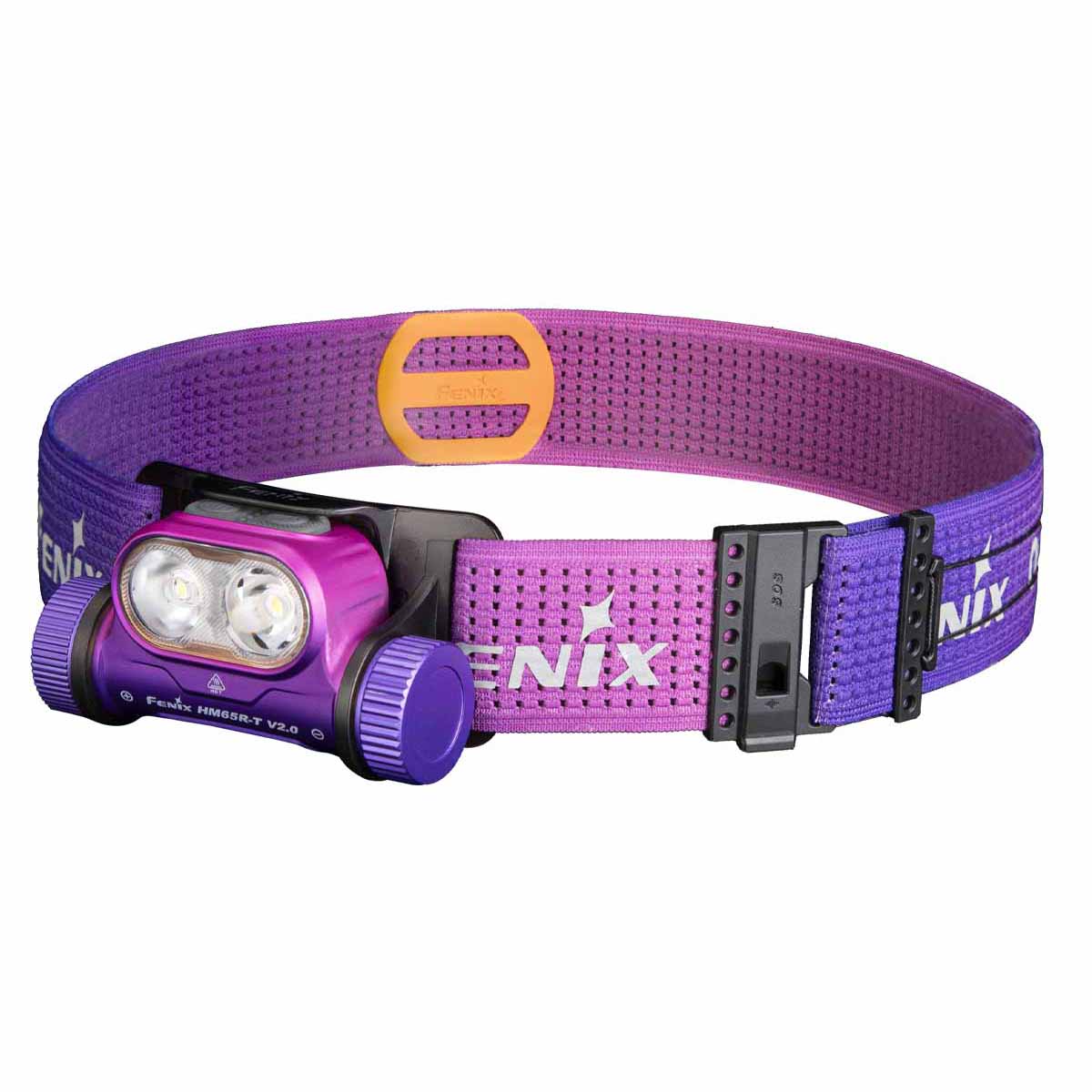

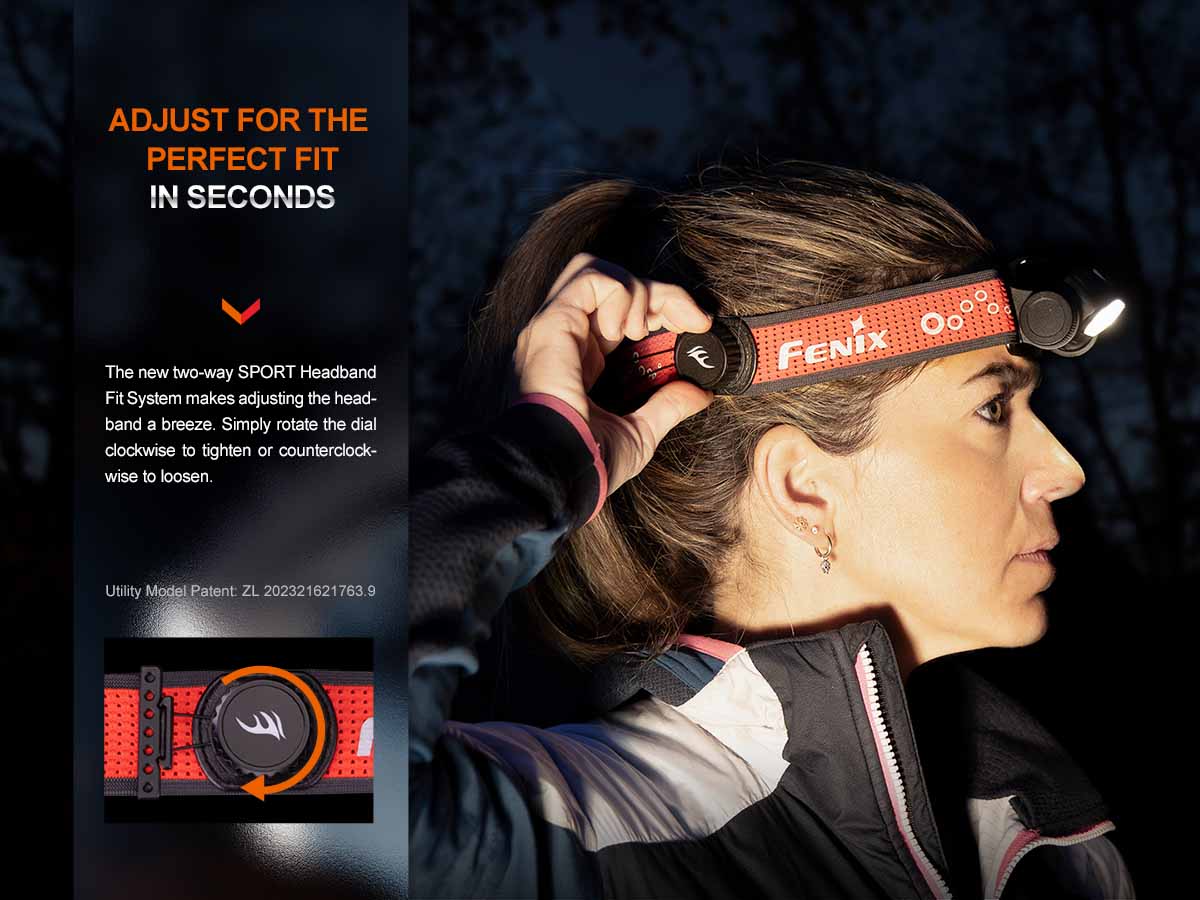

• Sport Headband: New Two-Way Fit System Single-handed operation with the new two-way SPORT headband fit system.

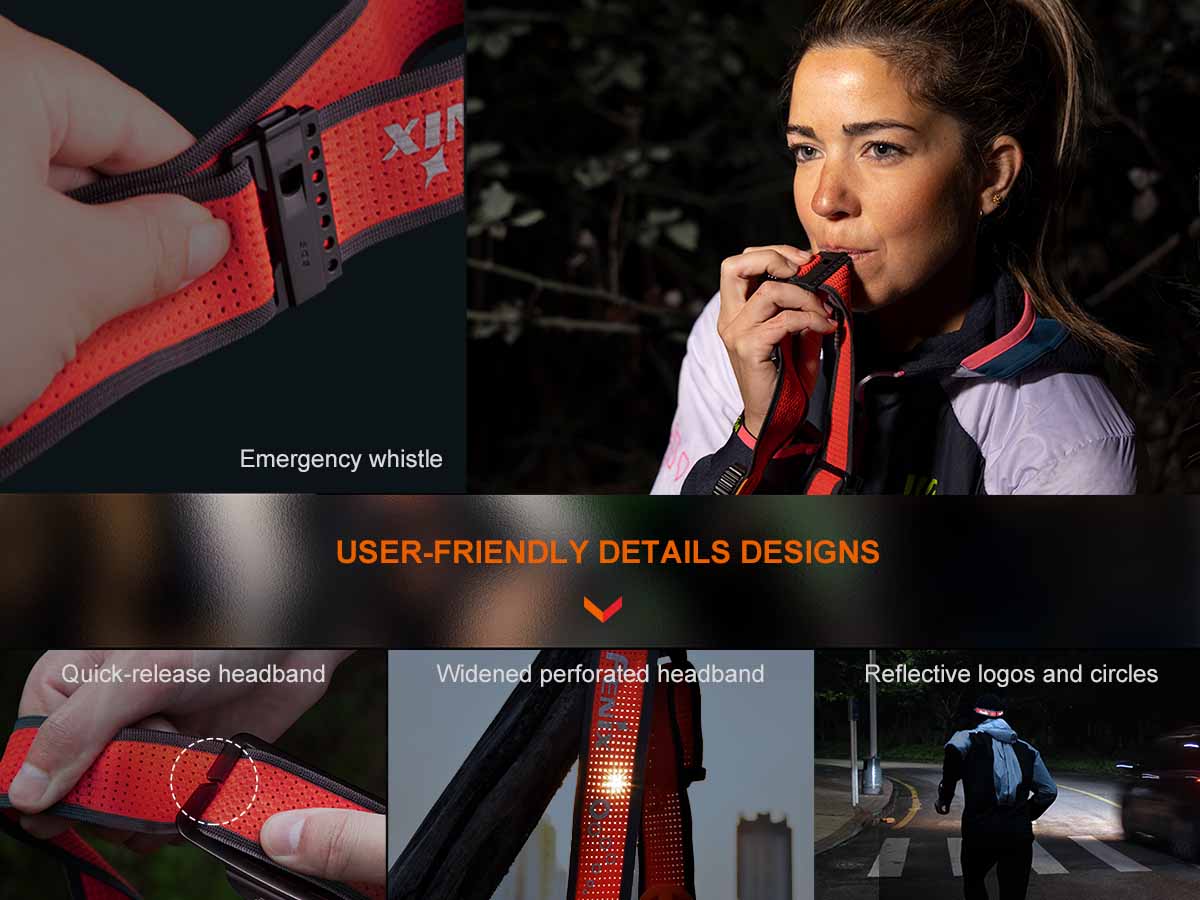

• Enhancing safety with an Emergency Whistle An emergency whistle is attached to the headband to enhance users safety.
• Battery Level and USB Type-C Charging Battery level indication and USB Type-C charging port.

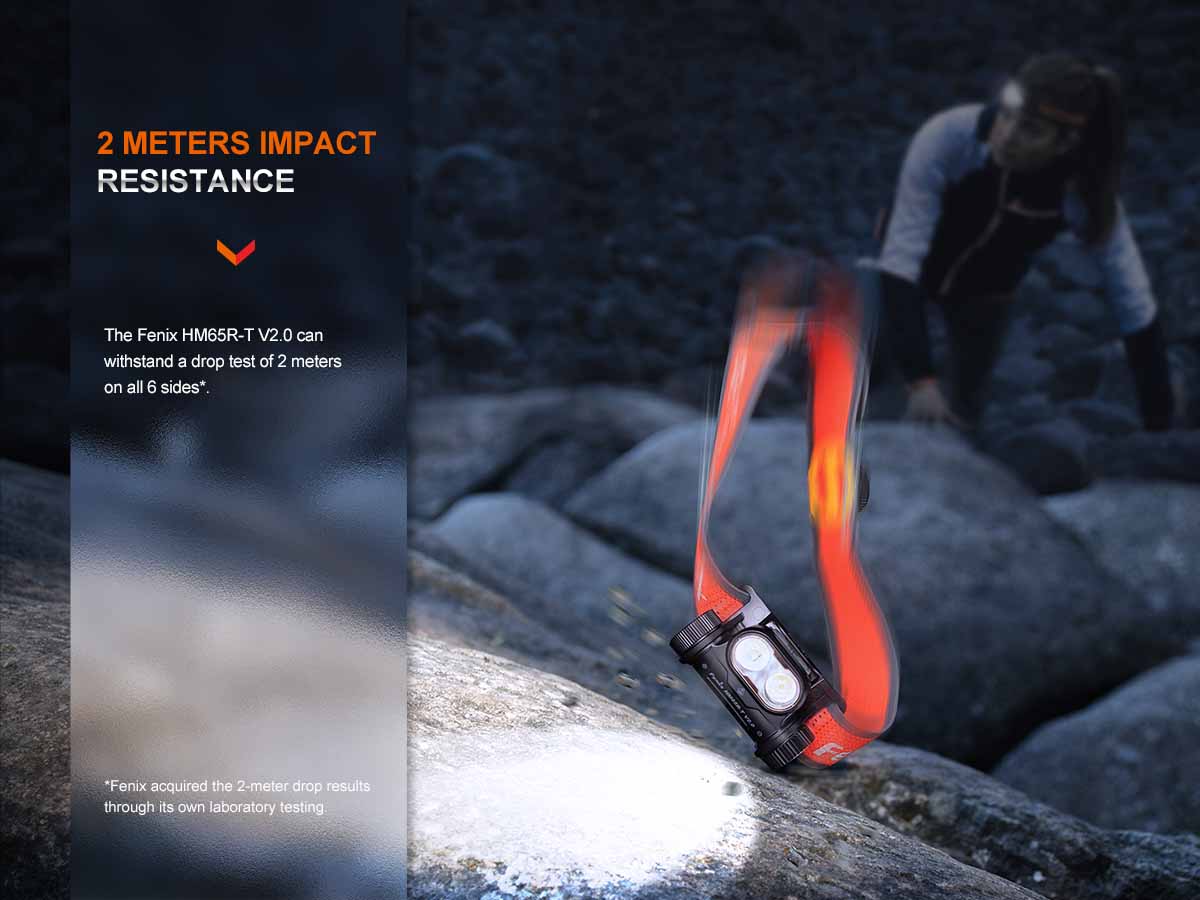

• Durable IP68 Protection and Impact Resistance IP68 rated protection and 2 meters impact resistance.
• Reverse Polarity Protection for Battery Safety Reverse polarity protection, to protect from improper battery insertion.
• Lockout Function Enhances Control Safety Lockout function and widened controls cover avoid accidental activation.

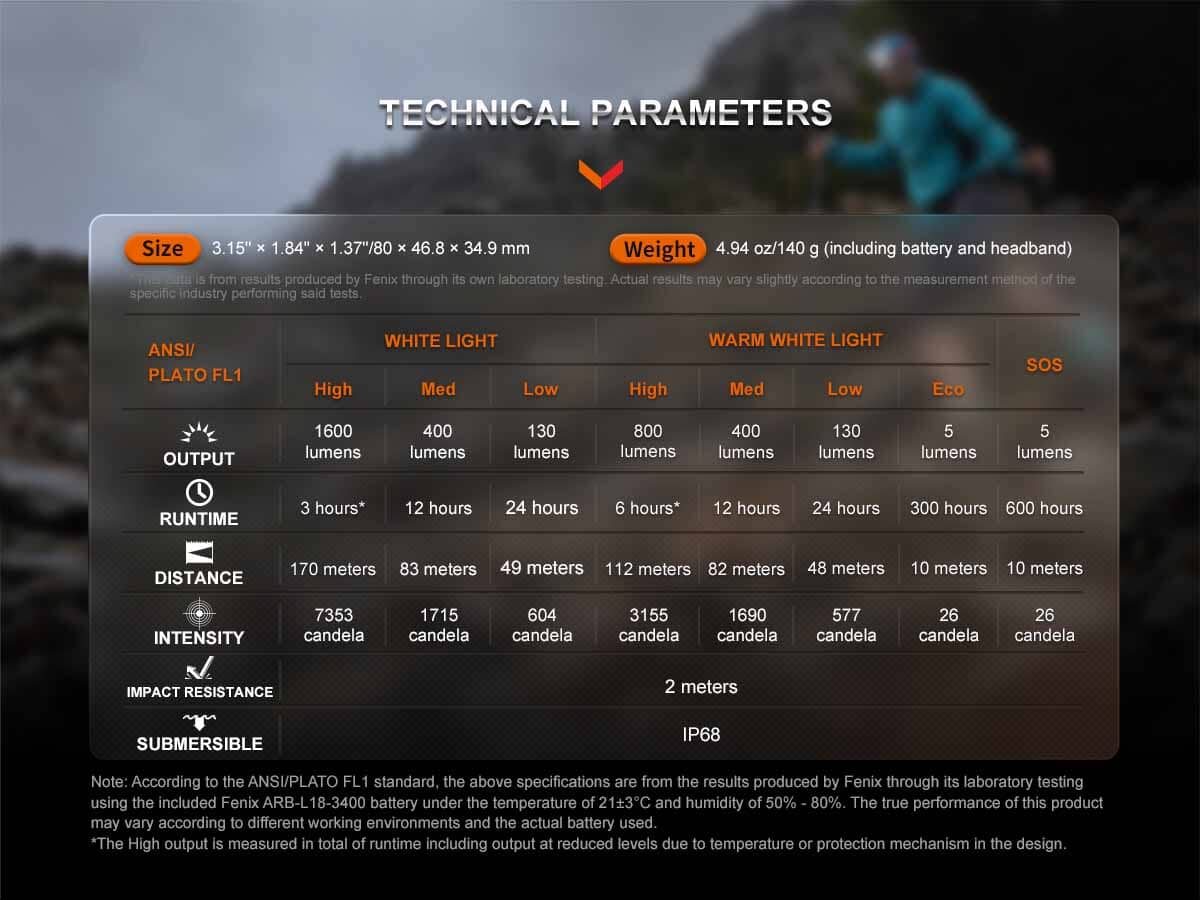

Specification

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the included Fenix ARB-L18-3400 battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.

*The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

FAQS

Q1. What is the product positioning of HM65R-T V2.0? What are the key features of HM65R-T V2.0?

Fenix HM65R-T V2.0 is an ultra-lightweight magnesium trail running headlamp. Its key features include:
1. 1600 lumens max output; 170 meters max beam distance; 24-hour runtime mode for trail running.
2. Penetrating warm white spotlight, all weather applicable.
3. Lightweight magnesium material.
4. Two-way adjustable headband with an emergency whistle.

Q2. What kind of LEDs are used in HM65R-T V2.0? Does Fenix offer to replace LED?

A Luminus SST40 white light LE D and a OSRAM GW PUSTA1.PM warm white light LED; with a lifespan of 50,000 hours each.
Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of HM65R-T V2.0?

The color temperature of white light is a round 6 5 00K , the color temperature of warm white light is arou nd 3 000K.

Q4. What is the operating voltage of HM65R-T V2.0?

The operating voltage is 2.8V~8.4V. The operating current is 12mA~5000mA.

Q5. Is HM65R-T V2.0 rechargeable? How long is the charging time?

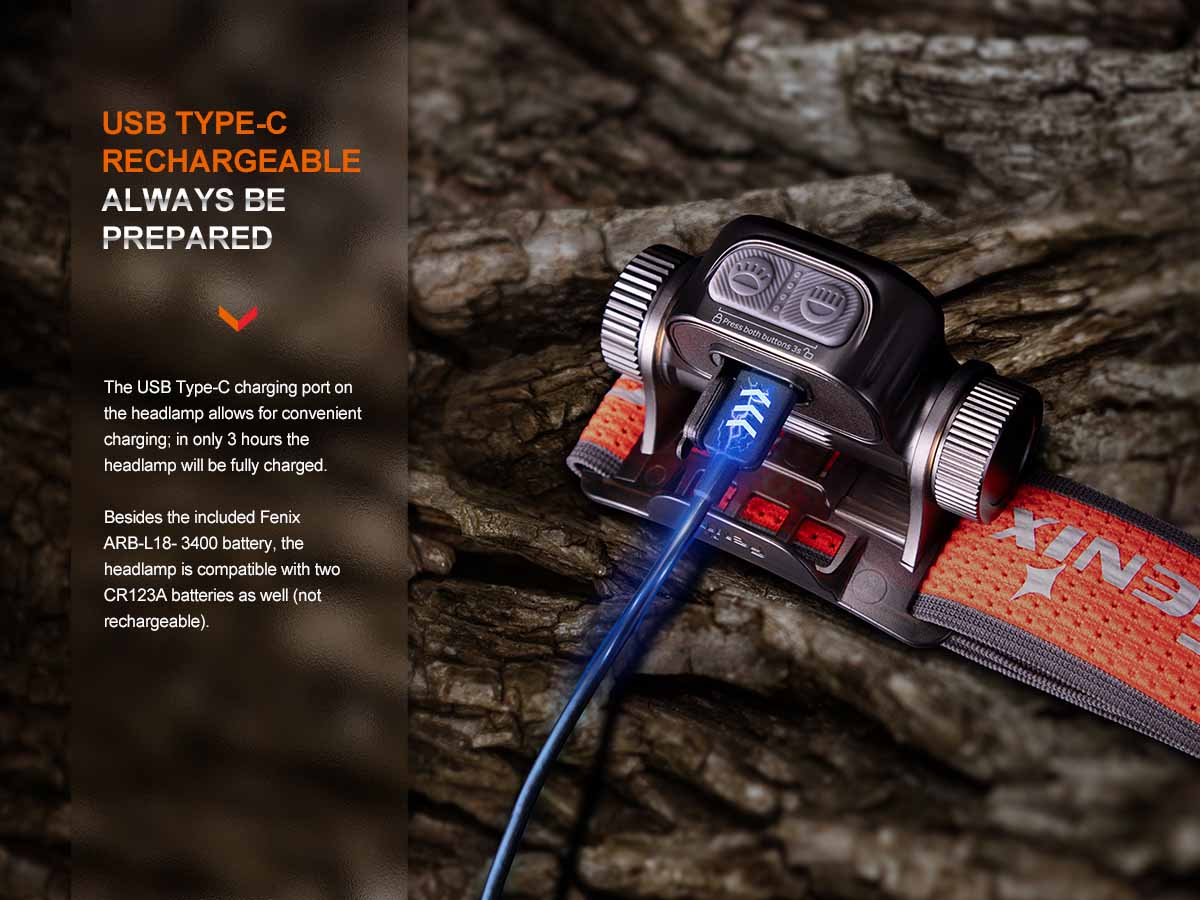

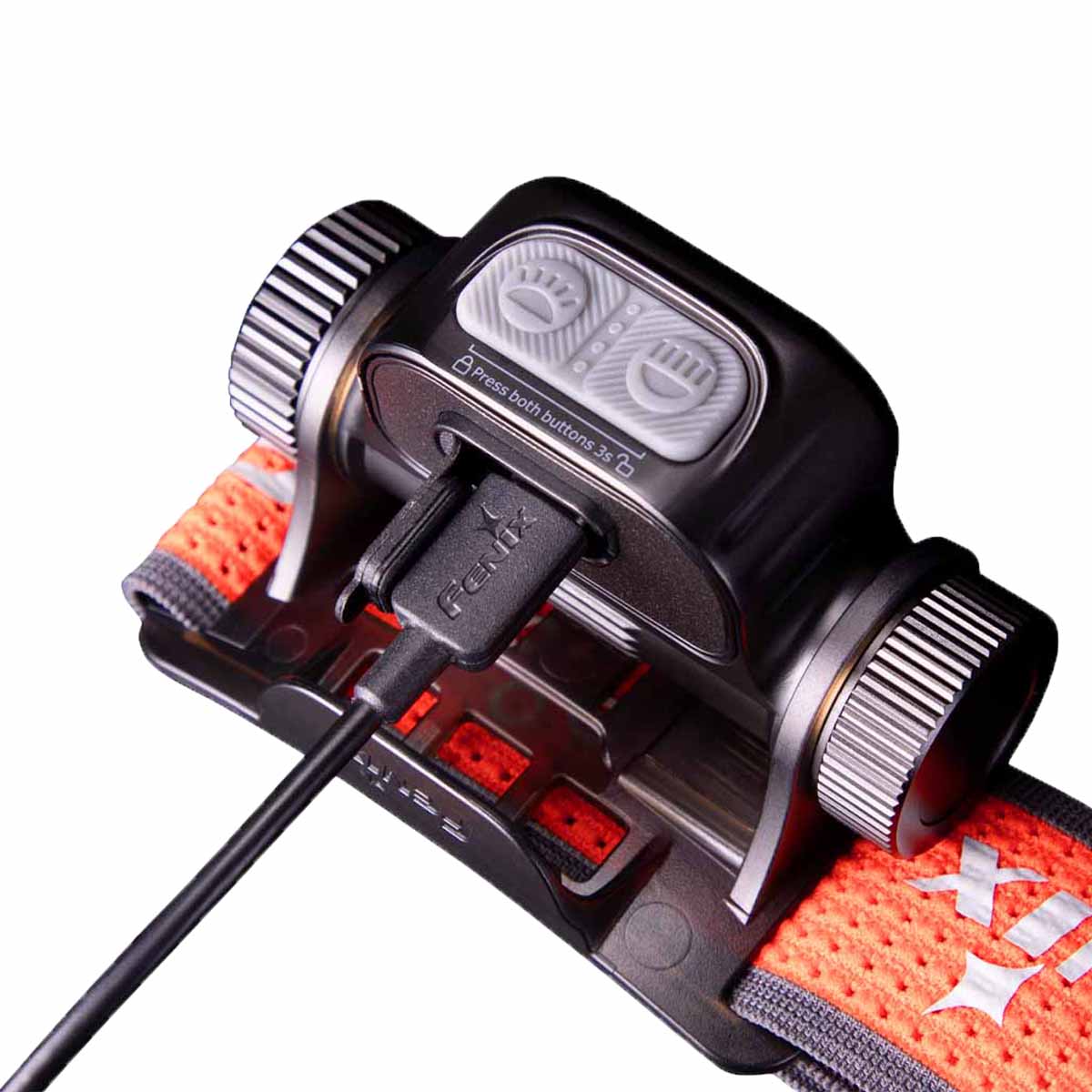

The included 3400mAh is rechargeable. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp to charge the battery. The charging time of the included Fenix ARB-L18-3400 is about 3 hours from depleted to fully charged with a 5V/2A charging adapter .

Q6. How to prevent accidentally activate the HM65R-T V2.0?

Lock: With the lamp switched off, simultaneously press and hold the two switches for 3 seconds, the lamp will blink 4 times on the Eco output of warm white light mode to indicate locked status.
Unlock: With the lamp locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 blinks and activates on the Eco output of warm white light mode.
In locked status, clicking or pressing the switches will activate 4 blinks on the Eco output of warm white light mode to indicate locked status.
* When the charging cable is plugged in, the lamp unlocks automatically in switched-off status. The Low output of white light mode and warm white light mode can be operated while charging.

Q7. Why does the HM65R-T V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

There are two reasons:
1. Intelligent Overheat Protection
The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 6 0 °C or above, the lamp will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Eco output is reached.

Q8. Why does the HM65R-T V2.0 happen to flicker?

Poor battery level.
Solution: Re charge or replace the battery (Ensure battery is inserted according to the manufacturer’s specifications).
B: The contact point or contact of the battery or headlamp is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.

Q9. What kind of battery can be used in HM65R-T V2.0?

Fenix ARB-L18-3400 battery is recommended. Compatible with 2 x CR123A batteries. Other Li-ion batteries are not recommended. As High output fail to headlamp up due to current and voltage limitation, an unmatched battery may cause the headlamp to fail to work normally.

Q10. What are the optional accessories for HM65R-T V2.0?

The included headband.

E04R

The Fenix E04R is a meticulously crafted compact EDC flashlight where precision meets portability. It masterfully combines a practical white light, a night-vision-preserving red light, and a versatile multi-function side light. Its unique side light features emergency red/blue flashing, an atmospheric RGB breathing mode, and a dynamic RGB chase effect, delivering unmatched visual signaling for critical situations while adding ambiance to outdoor leisure. Power is supplied by a built-in 400mAh battery, recharged swiftly via a USB Type-C port on the flashlight. The innovative 360° rotatable clip offers secure, flexible attachment to pockets, caps, backpacks, shoulder straps, MOLLE, and beyond, adapting effortlessly to any scenario. More than a flashlight, the E04R elevates the daily carry and makes an especially thoughtful gift. It’s the perfect choice for those who value both preparedness and presentation.

• 300 LM Lumens
• 46 M Range
• 87 H Run Time
• IP66 Water Resistant

FEATURES

• High lumen, long range 300 lumens maximum output, 46 meters maximum beam distance.
• High quality LED Uses one Luminus SST-12 white LED and one red light LED, with a lifespan of 50,000 hours each.

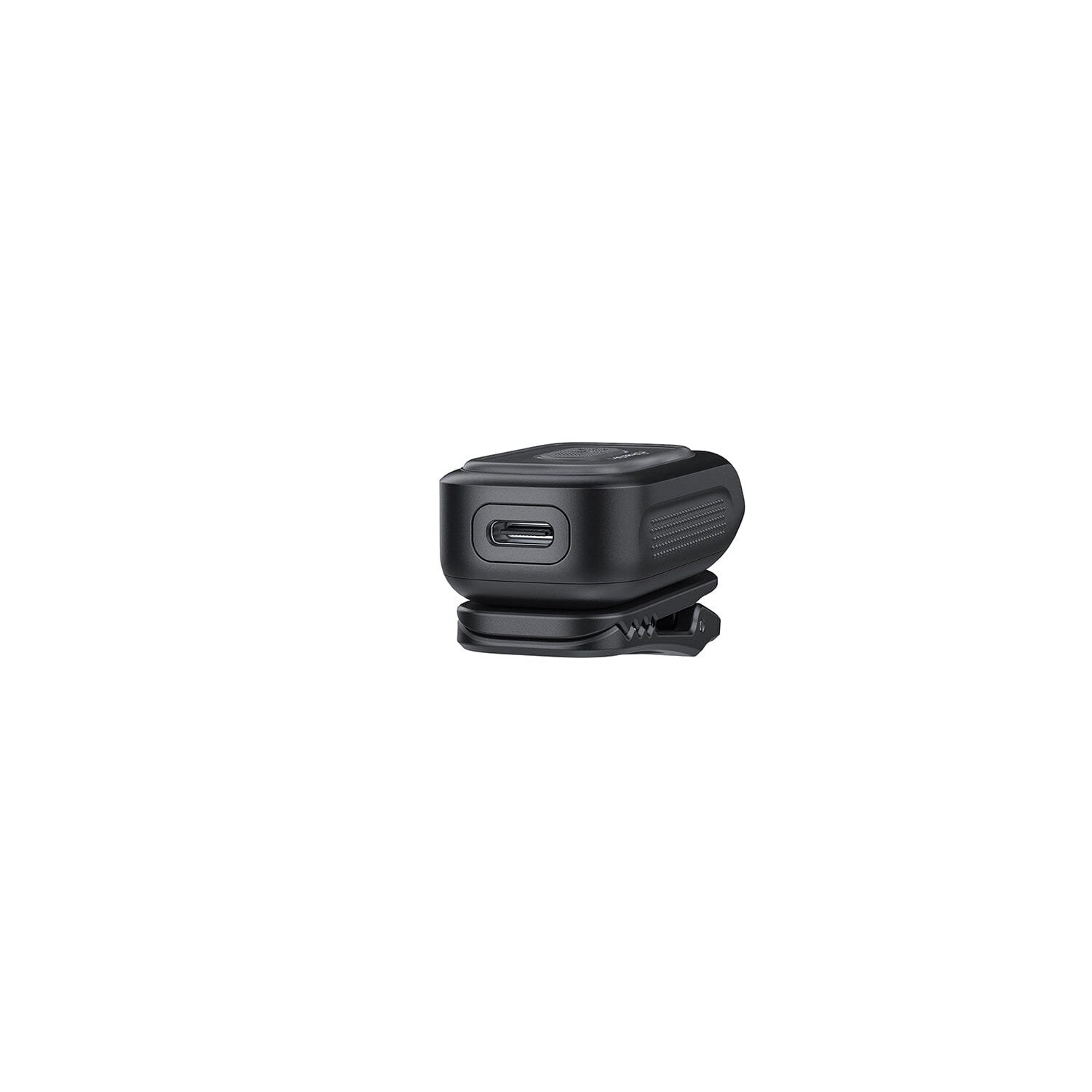

• USB Type-C charging USB Type-C charging port with inner waterproof treatment.
• 360° rotatable clip + 40° beam angle Supporting multiple wearing and usage methods (pockets, caps, backpacks, and more), leaving your hands free.
• Multi-light effect design Red-and-white dual main light and side warning light (supporting Red & blue flash, Red flash, and Blue flash), ideal for both everyday illumination and safety warnings.

Specification

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one built-in 400mAh battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments.

*The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

**The test standard for the Red & blue flash output of Side light mode is measured until the light turns off.

FAQS

Q1. What is the product positioning of E04R? What are the key features of E04R?

A: Fenix E04R is a 360° rotatable clip EDC flashlight specifically designed for outdoor adventures and law enforcement. Its key features include: 300 lumens maximum output and 46 meters maximum beam distance. Multi-light effect design integrating red-and-white dual main light and side warning light (supporting Red & blue flash, Red flash, and Blue flash), ideal for both everyday illumination and safety warnings. 360° rotatable clip + 40° beam angle, supporting multiple wearing and usage methods (pockets, caps, backpacks, and more), leaving your hands free. Simple and fast operation with the dual switch.

Q2. What kind of LEDsare used in E04R? Does Fenix offer to replace LED?

A: Utilizes one Luminus SST-12 white light LED and one red light LED. Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of E04R?

A: 6500k.

Q4. What is the working voltageof E04R?

A: The working voltage is 3.0 V - 4.2 V. The limiting working voltage range is 2.8 V-4.35 V.

Q5. Is E04R rechargeable? How long is the charging time?

A: Yes. The E04R is rechargeable via the USB Type-C charging port. The normal charging time is about 2 hours from depleted to fully charged with a 5V/1A or above charging adapter.

Q6. How to prevent accidentally activating the E04R?

A: Press and hold the two switches simultaneously for 3 seconds to lock or unlock the flashlight.

Q7. Why does the E04R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons: 1. Intelligent Overheat Protection The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. 2. Low-voltage Warning When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q8. Why does the E04R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate: 1. Poor battery level. Solution: Recharge the battery. The flashlight is locked. Solution: Press and hold the main light switch and the side light switch simultaneously for 3 seconds to unlock the flashlight. If the above methods don't work, please contact your authorized distributor.
