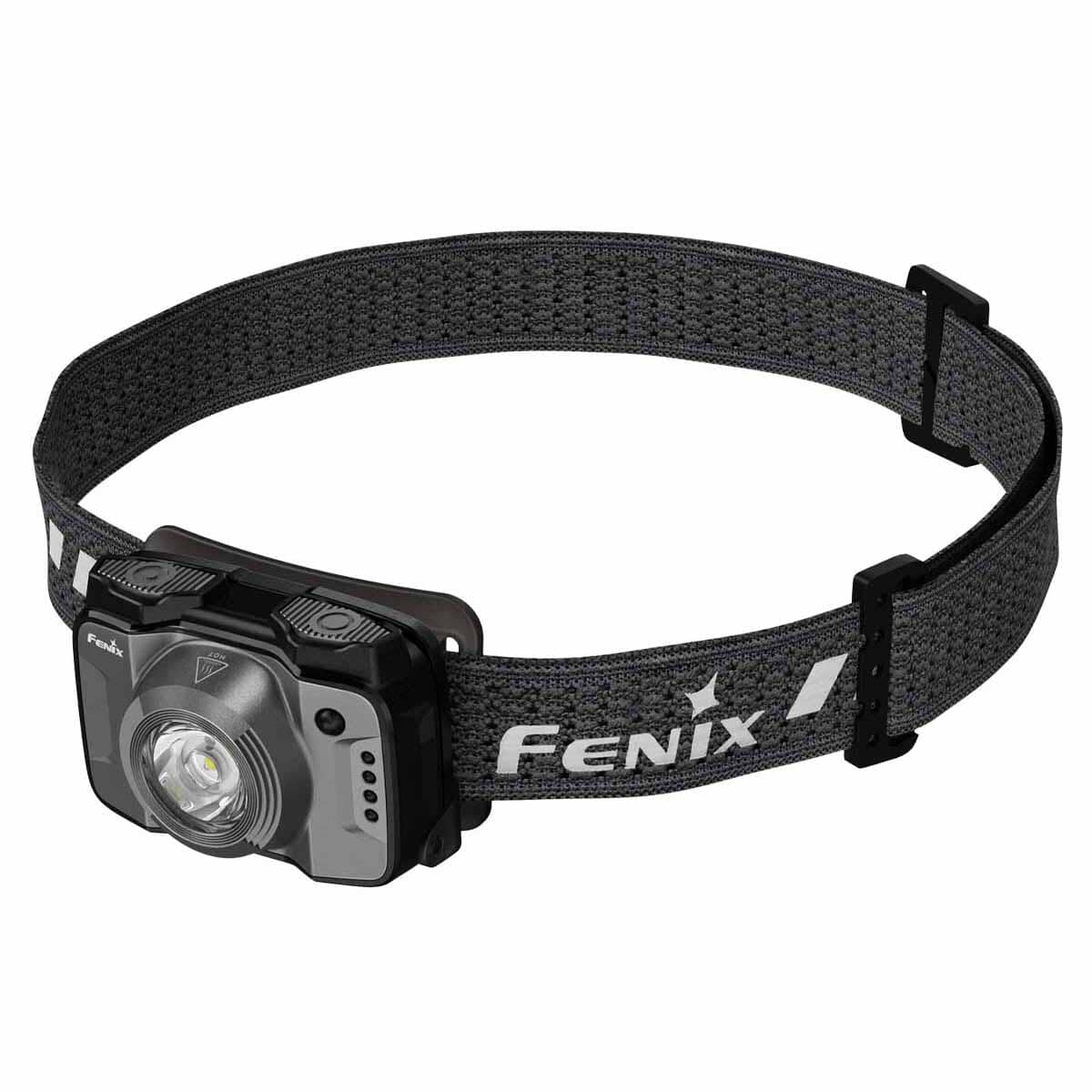

OUTDOOR ULTRALIGHT RECHARGEABLE HEADLAMP

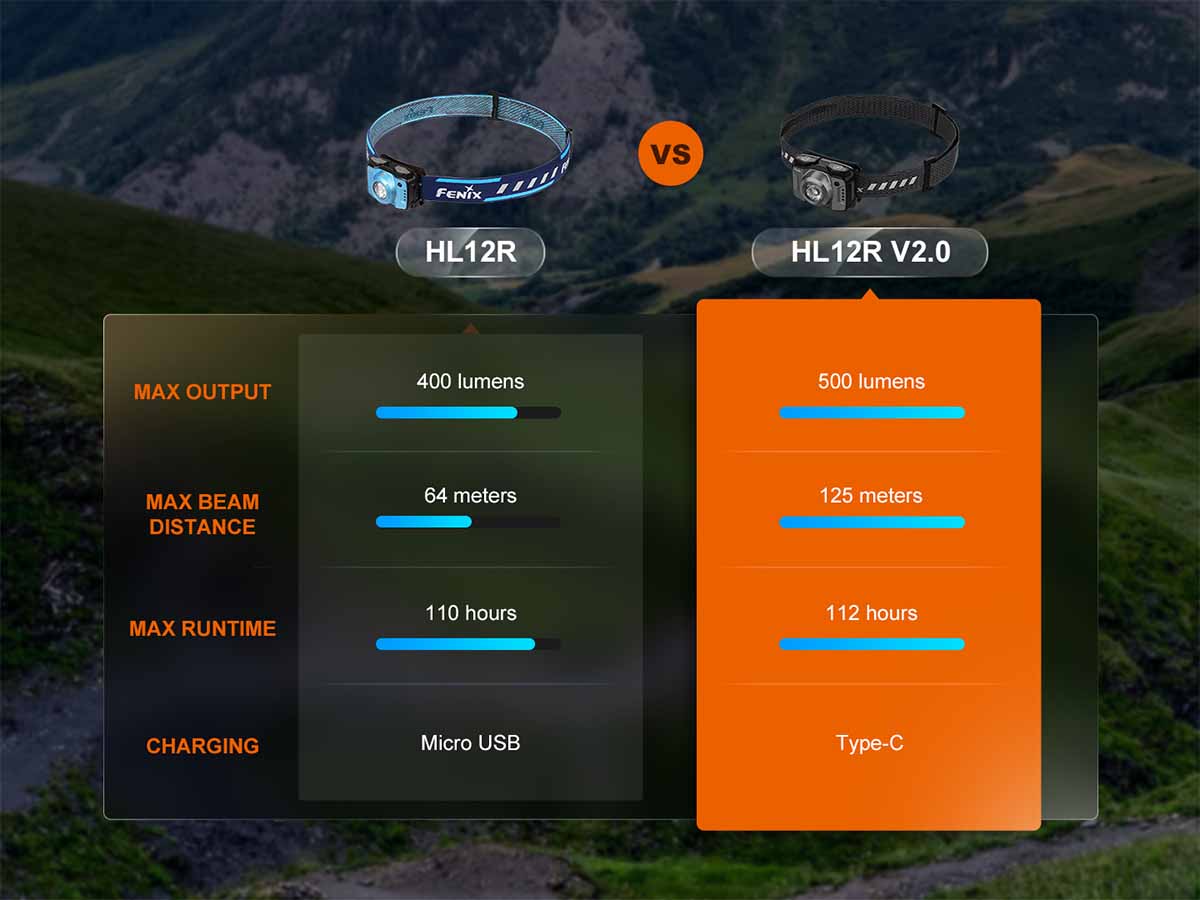

The Fenix HL12R V2.0 headlamp is an ideal companion for outdoor adventures, whether you're trekking, running, or camping. Powered by a built-in 950mAh battery, this headlamp offers a maximum output of 500 lumens and a beam distance of up to 125 meters. The Fenix HL12R V2.0 features four different white light outputs, along with constant and flashing red light modes, providing versatile illumination for various situations. This headlamp is equipped with dual top switches for quick and easy operation. With a front case made of aluminum alloy material, the Fenix HL12R V2.0 has IP66-rated protection and 1.5 meters of impact resistance. Additionally, it is rechargeable via a USB Type-C charging port, ensuring you always have reliable illumination whenever you need it.

• 500 LM Lumens
• 125 M Range
• 112 H Run Time
• IP66 Water Resistant

FEATURES

• Maximum Light Performance 500 lumens maximum output, 125 meters maximum beam distance.
• Luminus LED Lifespan Insights Utilizes one Luminus SST20 white LED and one 2835 red LED; with a life span of 50,000 hours each.
• Powered by a 950mAh Battery Powered by a built-in 950mAh battery.
• Lighting Needs: White and Red Light White light and red light assist various lighting needs.

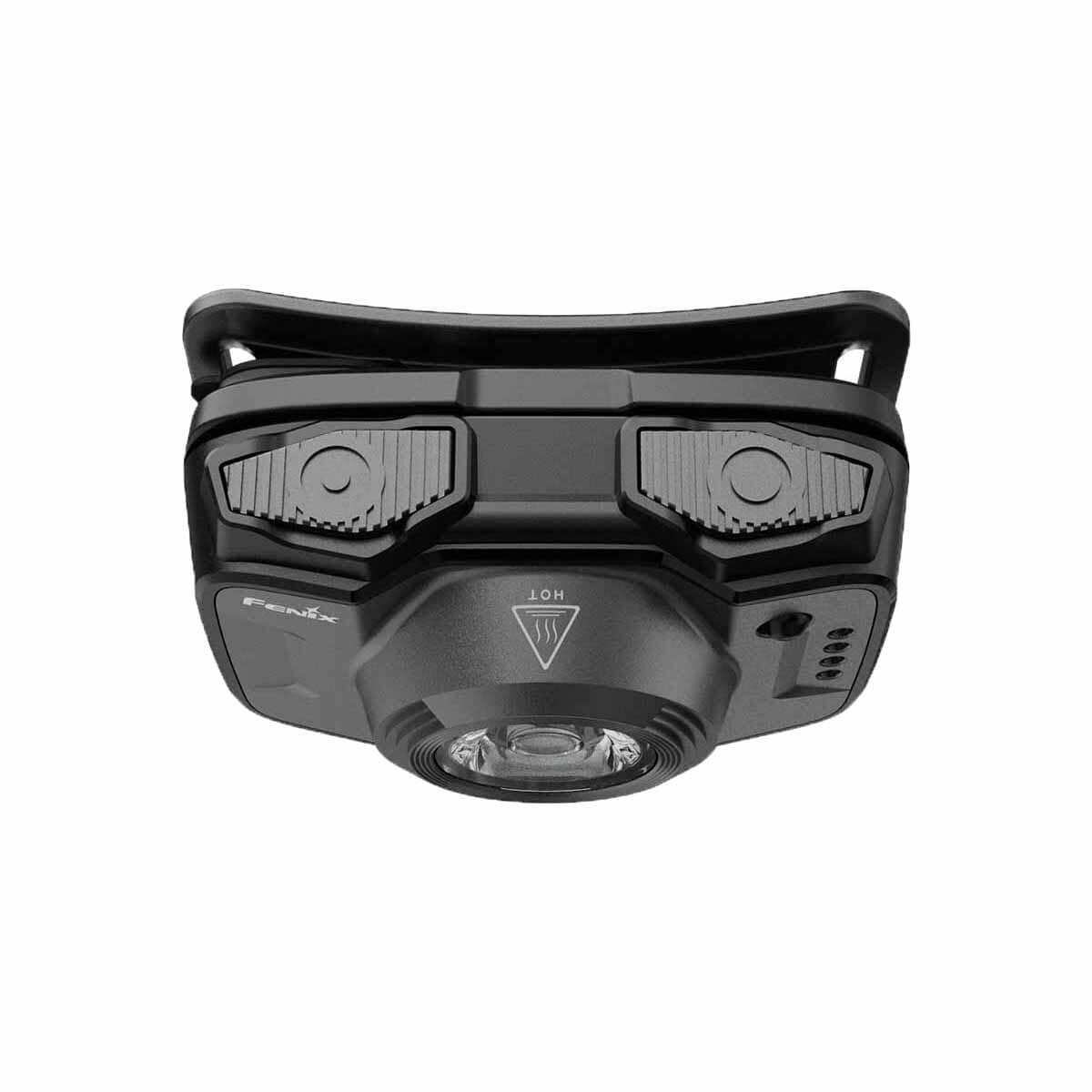

• Dual Top Switches for Quick Operation Dual top switches for easy and fast operation.
• Electronic Lockout Function Prevents Accidental Activation Electronic lockout function avoids accidental activation.

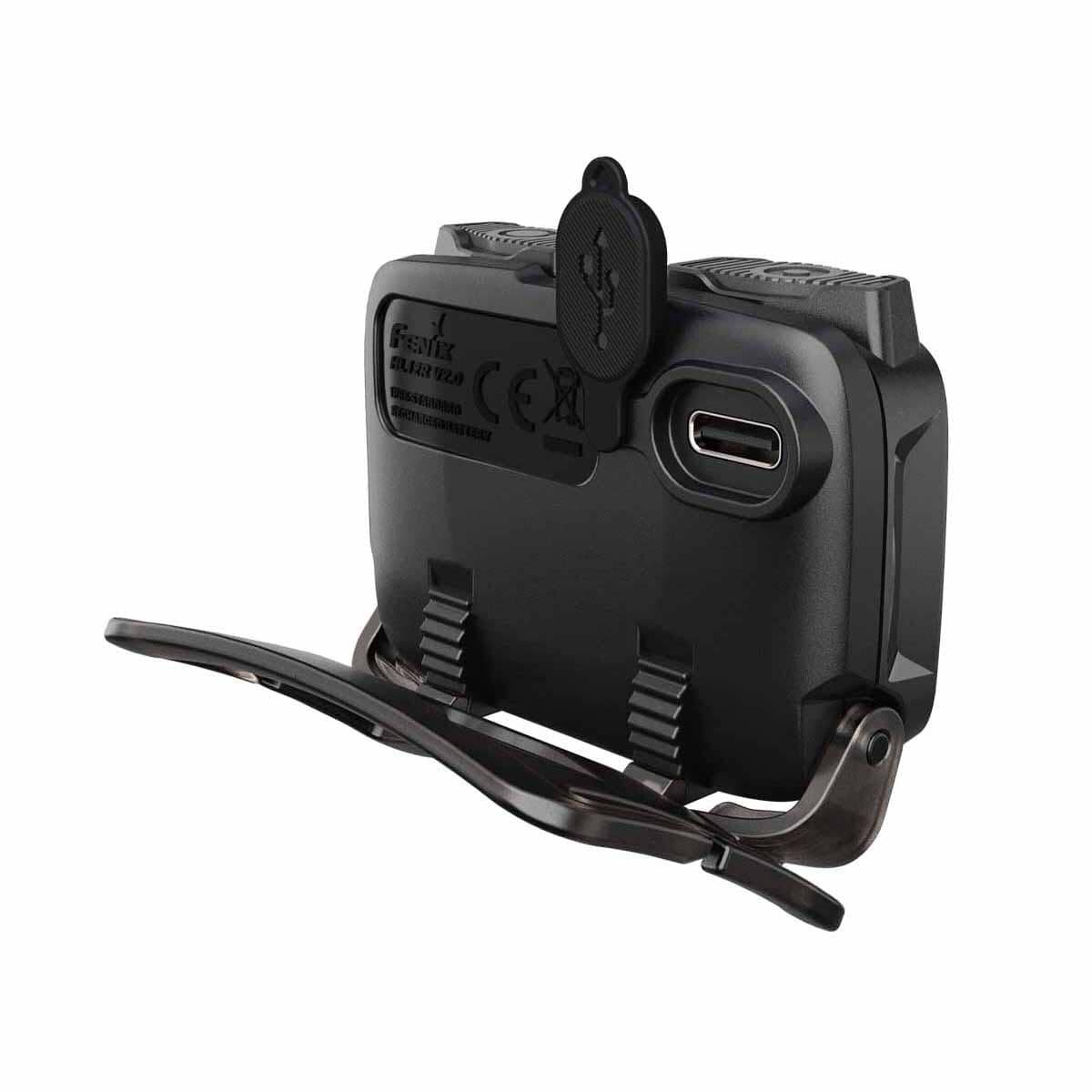

• USB Type-C Charging USB Type-C charging.

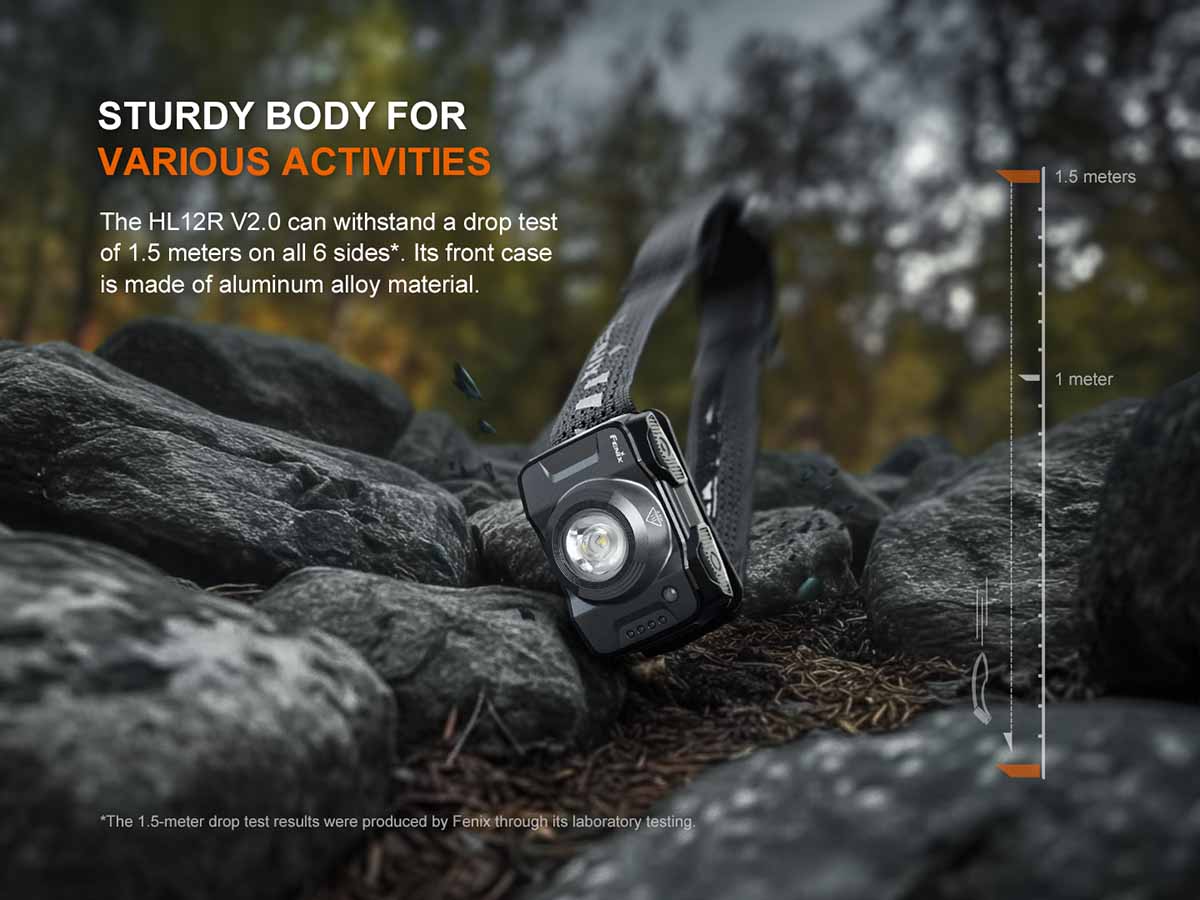

• Sturdy Aluminum Alloy Front Case The front case is made of high-quality aluminum alloy, which provides great sturdiness, wear resistance, and thermal performance.
• Durable IP66 Protection & Impact Resistance IP66-rated protection and 1.5 meters impact resistance.

Specification

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one built-in 950mAh battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments.

*The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

FAQS

Q1. What is the product positioning of HL12R V2.0? What are the key features of HL12R V2.0?

The Fenix HL12R V2.0 is an outdoor ultralight rechargeable headlamp. Its key features include:
1. 500 lumens maximum output; 125 meters maximum beam distance; 112 hours maximum runtime.
2. White light and red light assist various lighting needs.
3. Dual top switches for easy and fast operation.

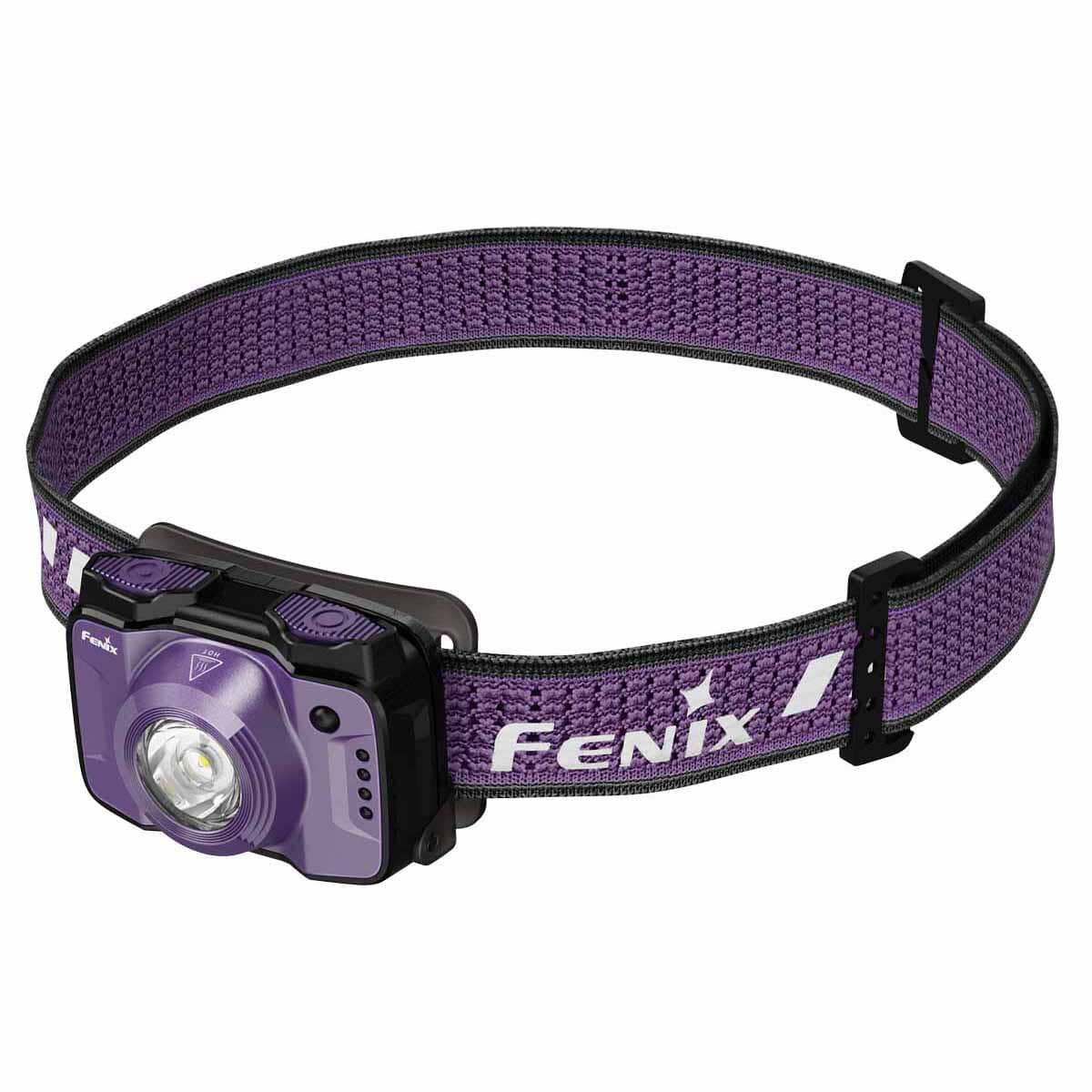

4. Two color options.
5. USB Type-C charging.

Q2. What kind of LEDs are used in HL12R V2.0? Does Fenix offer to replace LED?

Utilizes one Luminus SST20 white LED and one 2835 red LED; with a lifespan of 50,000 hours each.
Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the working voltage of HL12R V2.0?

The working voltage is 2.8 - 4.5 V. The limiting working voltage range is 2.8 - 6.0 V.

Q4. What is the color temperature of HL12R V2.0?

6000 - 6500K.

Q5. Is HL12R V2.0 rechargeable? How long is the charging time?

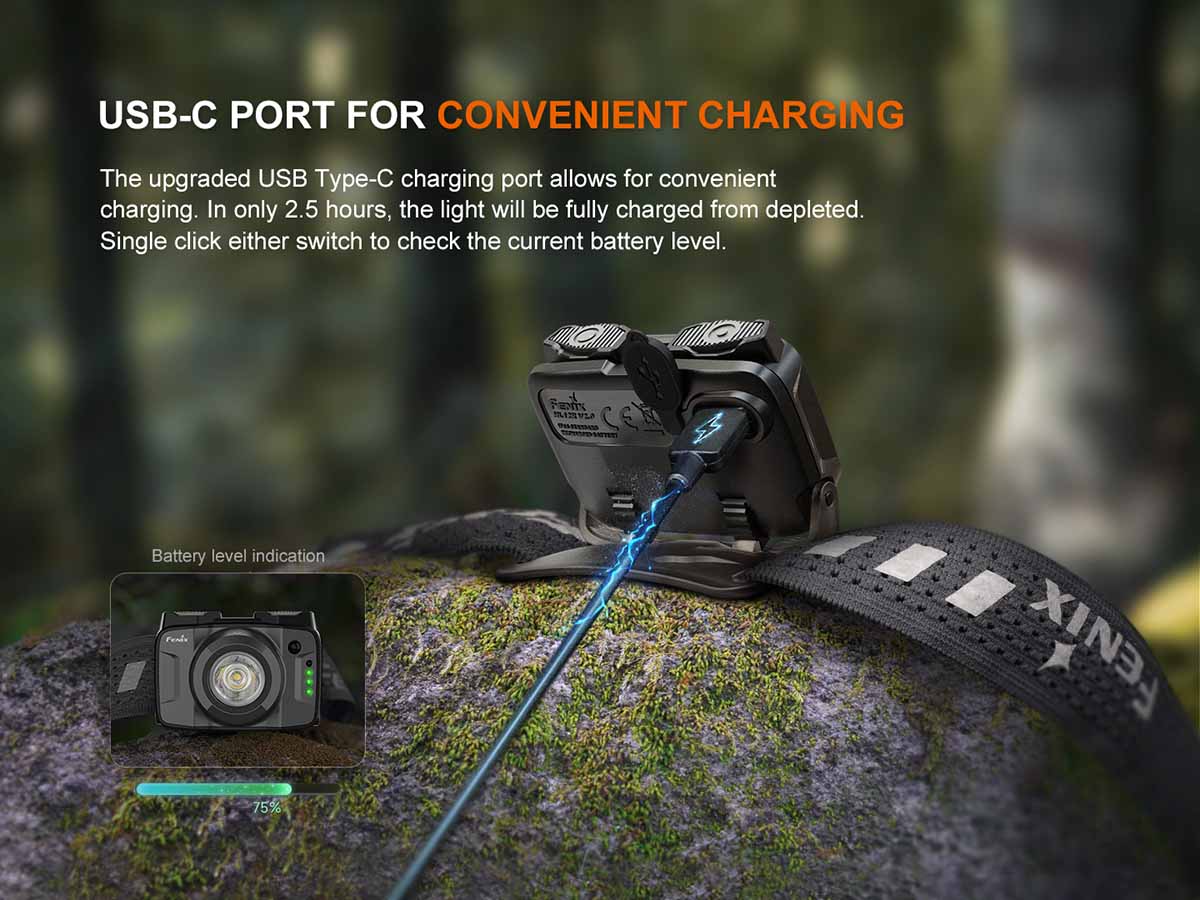

The HL12R V2.0 features a USB Type-C charging port for convenient charging of its built-in 950mAh battery. When charging, the indicators will flash from bottom to top to display the charging status. The normal charging time is about 2.5 hours from depleted to fully charged with a 5 V/1 A or above charging adapter.

Q6. Can the HL12R V2.0 be used in adverse weather conditions, such as rainy days or sandstorms?

The HL12R V2.0 features IP66-rated protection, and it is all-weather applicable. It can withstand heavy rain and splashing and is totally protected against dust and foreign objects as rated.

Q7. Why does the HL12R V2.0 or its battery level indicator happen to flicker?

Poor battery level may cause the lamp or its indicator to flicker or fail to illuminate. Please recharge the lamp. If this method doesn't work, please contact the distributor.

Q8. Why does the HL12R V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, one indicator blinks to remind users to recharge the battery in a timely manner.

Q9. How to prevent accidentally activating the HL12R V2.0?

Press and hold the two switches for 3 seconds simultaneously to lock or unlock the headlamp.
